Features and Benefits:
- Fluids Handled: Hydraulic oil,Synthetic and mineral based oil,Transmission fluid
- Markets Served: Marine, In-Plant, Mining equipment maintenance, Service Shops, Agriculture
- Pump Pressure Ratio - 1:1
- Continuous Duty Flow Rate - 5.3 gpm (20 l/min)
- Maximum Free Flow Rate - 13.7 gpm (52 l/min)
- Air Pressure Operating Range - 20-140 psi (1.5-10 bar)
- Maximum Outlet Pressure - 140 psi (10 bar)
- Air Motor Effective Diameter - 1 1/2" (35 mm)
- Air Motor Stroke - 3" (75 mm)
- Air Consumption - 5.3 scfm (150 NL/min)
- Air Inlet. - 1/4” NPT(F)
- Fluid Inlet - 1” NPT(F)
- Fluid Outlet - 3/4” NPT(F)
- Wetted Materials - Aluminum / Steel / Polyurethane / NBR / Acetal
- Noise Level- 80 dB
- Application - Stub pump, 16 Gallon drum pump, 55 Gallon drum
- Simultaneous Dispense Points - 1
- Max. Line Length - 100' (30 m)

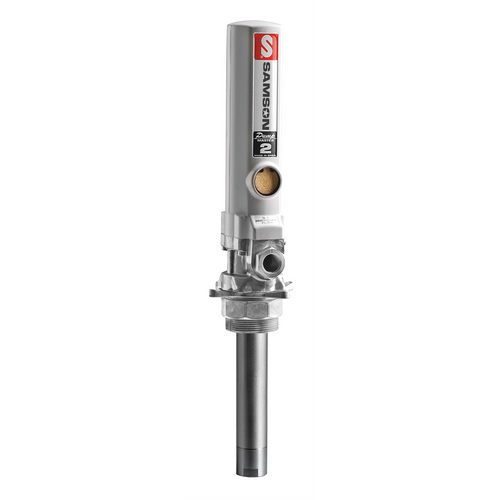

- Pump Description - Utility Transfer Pump
Double acting air operated low pressure pumps for transferring lubricants. Pumps include height adjustable 2" NPTM bung adapter for tank or drum bung mounting. Built in port for optional 609 007 pressure relief valve.
